Billets

A billet is a length of metal that has a round or square cross-section, Billets are created directly via continuous casting or extrusion or indirectly via hot rolling an ingot or bloom. Billets are further processed via profile rolling and drawing. Final products include bar stock and wire.

Centrifugal casting is also used to produce short circular tubes as billets, usually to achieve a precise metallurgical structure. They are commonly used as cylinder sleeves where the inner and outer diameters are ground and machined to length. Because their size is not modified significantly, they are not always classified as semi-finished casting products.

I.    Billet Size   : 150 X 150mm and 130 X 130mm
II.   Grade         :  ASTM A 615, SASO SSA 2, BS 4449, SAE 1006, SAE 1008, SAE 1010,
                          SAE 1012 and other grades as per customer specifications.

III.   Other Requirements and Tolerances.



Sl # Description Acceptance Limit (max)
1 Rhomoidity 5% Max
2 Twist 0.5 Deg / Meter
3 Side Tolerance ± 3 mm
4 Length tolerance ± 60 mm
5 Waviness Nil
6 Out of Straightness 5 mm / Meter. Max 60 mm in full length
7 Corner radius 4 to 8 mm radius
8 Surface Quality Billet should be free from : Slag patches, Joints, cracks, scabs, blow holes, pin holes, deep cuts, hot tears, heavy burrs etc.
9 Internal Quality Billet should be free from internal cracks, blow holes, pinholes, porosity, central shrinkage, aluminum and slag patches, piping, segregation, etc.
10 Billet Burr Free from heavy burrs and suitable for endless welding during rolling.
11 Billet cross-section Billet ends to be flat and perpendicular to longitudinal axis. Tapered & uneven cuts unacceptable.
12 Concavity / Convexity 2 mm for billet side of 150*150mm

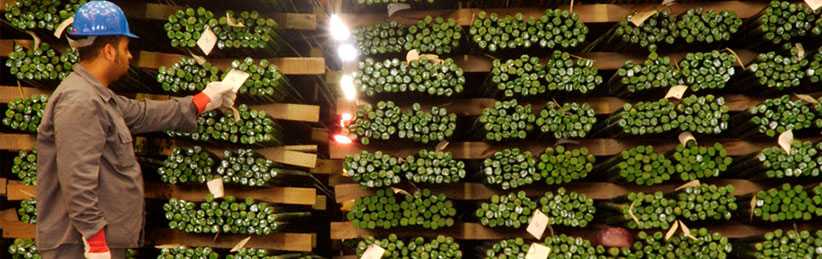

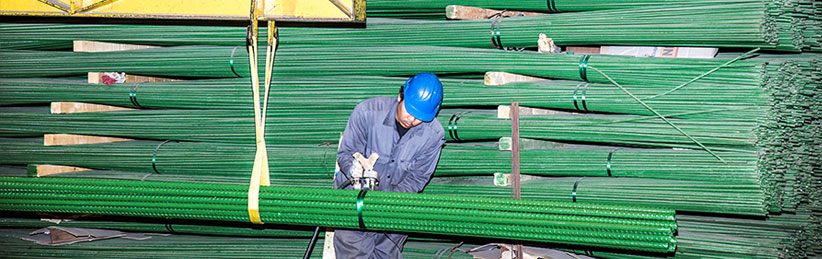

Fusion Bonded Epoxy Coating (FBEC)

Fusion Bonded Epoxy Coating (FBEC) is normally referred to as FBE Coating and is generally used to protect concrete reinforcing bars used in the construction industry. Over the last 35 years, FBE Coating has been used worldwide to protect reinforcing steel in concrete in the most adverse, corrosion-prone environments. FBE Coating is applied as a dry powder and at normal air temperature.

FAISAL STEEL’s fusion bonded epoxy powder coating is a high-quality and high-performance anti-corrosion coating. It provides excellent protection for concrete reinforcing bars used in any construction industry scenario. Some of the benefits that FBE Coating provides are:

  • Excellent steel adhesion provides long-term corrosion resistance
  • Advanced engineering and manufacturing techniques that can be customized to any specific project
  • Tough physical properties that ensure no or minimal damage during handling, transportation, installation and operation
  • High resistance to cathodic disbondment
  • Full compatibility with mill applied FBE Coating
  • Stability and resistance to high operating temperatures
  • Stability and resistance to chemical contaminants in the environment

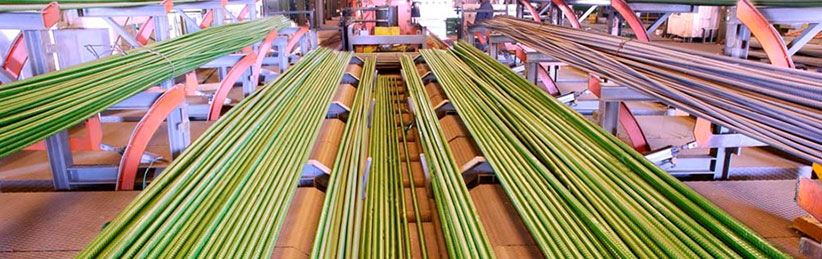

The powder is applied electrostatically to the cleaned surface of a hot steel rebar, where it fuses, melts down and cures to an adherent, continuous and chemically cross-linked protective film. FBE Coating is an environmentally safe thermosetting coating sprayed onto the Rebar. This coating significantly reduces the amount of current required for cathodic protection to prevent corrosion. FBE Coating has been laboratory and field tested to assure customers of field-proven protection that will last for generations.



TECHNICAL DATA SHEET OF FUSION BONDED EPOXY COATING

Standard : ASTM A775 / A775M (Chart)

S.NO. DESCRIPTION STANDARD SPECIFIED REQUIREMENTS
1 VISUAL INSPECTION OF OIL AND GREASE FREE OF OIL AND GREASE
2 SHOT BLASTING AGAINSTSSP VIS 1 SSPC VIS 1 STANDAR (NEAR WHITE)
3 COPPER SULPHATE TEST MILL SCALE CONTAMINTION TURN RED COLOUR
4 CHLORIDE TEST STANDARD REFERENCE (<10 MICRO GRAM / sq cm.
5 SURFCAE CONTAMINATION TAPE TEST 40 - 115 MICRONS
6 BACK CONTAMINATION TAPE TEST BACK CONTAMINATION STANDARDS (<20%)
7 TEMPERATURE OF REBARS 232 - 239 C
8 MEK TEST No Reaction of MEK solution on Coating
9 HOLIDAY TEST 3 HOLES / PER METER LENGTH (max)
10 THICKNESS OF COATING 175 - 300 MICRONS
11 BENDING TEST BENDING AROUND 6D MANDREL

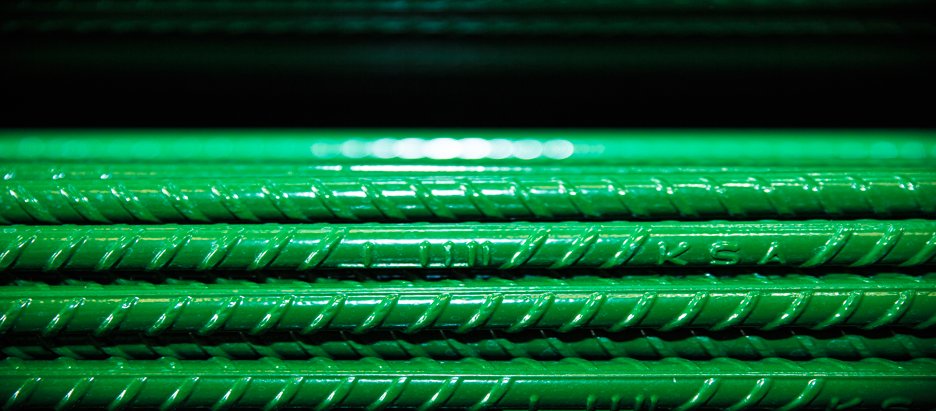

EPOXY COATED REBAR ASTM A775

NOMINAL DIAMETER mm No. of Bars
per bundle 		Nominal
Weight kg/m 		Nominal
CSA mm2
8 422 0.40 50.3
10 270 0.62 78.5
12 188 0.89 113
14 38 1.21 154
16 106 1.58 201
18 84 2.00 254
20 68 2.47 314
22 56 2.98 381
25 44 3.85 491
28 34 4.83 616
32 26 6.31 804
