Billets

A billet is a length of metal that has a round or square cross-section, Billets are created directly via continuous casting or extrusion or indirectly via hot rolling an ingot or bloom. Billets are further processed via profile rolling and drawing. Final products include bar stock and wire.

Centrifugal casting is also used to produce short circular tubes as billets, usually to achieve a precise metallurgical structure. They are commonly used as cylinder sleeves where the inner and outer diameters are ground and machined to length. Because their size is not modified significantly, they are not always classified as semi-finished casting products.

I.    Billet Size   : 150 X 150mm and 130 X 130mm
II.   Grade         :  ASTM A 615, SASO SSA 2, BS 4449, SAE 1006, SAE 1008, SAE 1010,
                          SAE 1012 and other grades as per customer specifications.

III.   Other Requirements and Tolerances.



Sl # Description Acceptance Limit (max)
1 Rhomoidity 5% Max
2 Twist 0.5 Deg / Meter
3 Side Tolerance ± 3 mm
4 Length tolerance ± 60 mm
5 Waviness Nil
6 Out of Straightness 5 mm / Meter. Max 60 mm in full length
7 Corner radius 4 to 8 mm radius
8 Surface Quality Billet should be free from : Slag patches, Joints, cracks, scabs, blow holes, pin holes, deep cuts, hot tears, heavy burrs etc.
9 Internal Quality Billet should be free from internal cracks, blow holes, pinholes, porosity, central shrinkage, aluminum and slag patches, piping, segregation, etc.
10 Billet Burr Free from heavy burrs and suitable for endless welding during rolling.
11 Billet cross-section Billet ends to be flat and perpendicular to longitudinal axis. Tapered & uneven cuts unacceptable.
12 Concavity / Convexity 2 mm for billet side of 150*150mm

Galvanized Steel Wire

AL FAISAL STEEL PRODUCTS CO. is famous for producing high-quality steel products, including galvanizing line end products. AL FAISAL STEEL PRODUCTS CO. is equipped with a modern, highly sophisticated 32 wire hot dip that has an automated galvanizing line with the facility for in-line Heat treatment (annealing) of drawn wire,and a nitrogen wiping facility for precision control of zinc coating film and consistency in the coating controlled by an automated Zinc Monitoring state-of-the-art facility.

Galvanized wire is a carbon steel wire coated with zinc. The two processes used to produce galvanized wire and coil are continuous hot dipping and electro-galvanizing. Generally speaking, the hot dip process consists of passing the steel through a bath of molten zinc. The electro-galvanizing process consists of the application of zinc by electrolytic deposition, or electroplating. The result is a layer of zinc tightly adhering to the base metal through an iron-zinc bonding layer.

A zinc coating is one of the most effective and economical methods of protecting bare steel from harsh environments. The zinc not only serves as a barrier between the steel and the environment, it sacrifices itself to protect the underlying steel wire.Galvanic protection occurs when two dissimilar metals are in contact and coupled with water and oxygen. Zinc corrodes preferentially to the iron in steel. This protection prevents corrosion of the steel from areas not covered with zinc. Thus, the spread of corrosion from cut edges, drill holes, etc. is minimized.

Because we adhere to the highest production standards, our steel wire can resist abrasion, bending fatigue and crushing. We understand the importance of producing a high-quality product that must perform at an optimal level to maximize its service life. Our technical expertise ensures that our galvanizing steel wire products are manufactured to the highest standards in the industry.

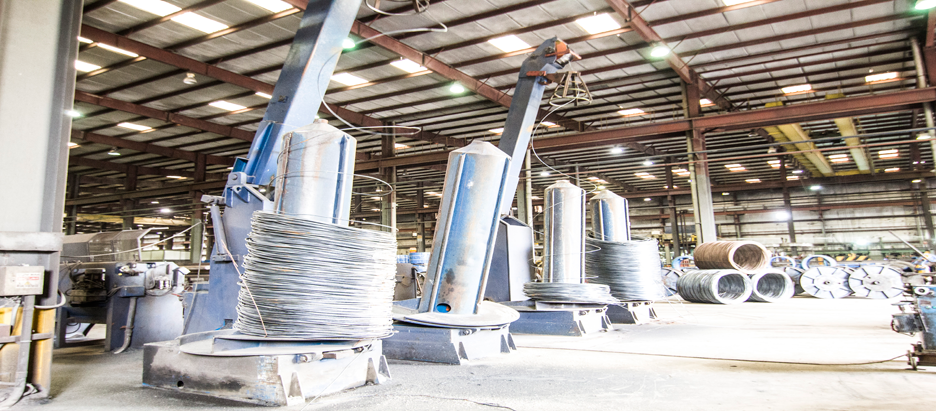

The processing line has an automated zinc coating monitoring system that can control steel wire of sizes ranging from 0.8mm to 4.5mm, which are used in electrical cable manufacturing,fencing, construction, barbed wires, nails, tying and binding wire.The galvanized wires are always tested according to the customers’ requirements. Highly trained and qualified professionals using the latest equipment conduct testing around the clock.



TECHNICAL DATA SHEET FOR GALVANIZED STEEL WIRE



  • Galvanized steel wire is produced in adherence to International Specifications such as:
  • Armouring Wire BS EN 10244
  • Heavy Coating ASTM A 392
  • Wipe Off Coating ASTM F-668
  • Commercial Coating ASTM A 641



ARMOURING WIRE

STANDARD SIZE MIN. MAS OF ZINC COATING (g/m2) MAX. RESITANCE AT 20 C (Q/km) ADHERENCE OF COATING TENSILE STRENGTH Mpa Elong %
BS EN 10244-1 0.80 155 273.5 1D 340 - 5
00 		10%
1.25 180 112.45 1D 340 - 500 10%
1.60 195 68.64 1D 340 - 500 10%
BS EN 10244-2 2.00 215 43.93 1D 340 - 500 10%
BS EN 10257-1 3.15 255 17.71 1D 340 - 500 10%



HEAVY COATING, WIPE OFF COATING & COMMERCIAL COATING



STANDARD SIZE MIN. MAS OF ZINC COATING (g/m2) ADHERENCE OF COATING TENSILE STRENGTH Mpa Elong %
Heavy Coating ASTM A 392 3.76 366 1D 340 - 460 10%
4.50 366 1D 340 - 460 10%
Wipe Off ASTM 668 2.00 to 2.65 92 1D 340 - 460 10%
3.00 to 3.76 92 1D 340 - 460 10%
Commercial ASTM A 641 1.80 70 1D 340 - 460 10%
2.00 to 2.50 70 1D 340 - 460 10%
3.00 to 3.76 70 1D 340 - 460 10%
4.00 70 1D 340 - 460 10%
Min. Inner Coil Dia Max. Outer Coi Dia In Coils of ID 300 mm Min. OD 800 mm Max.
Approx. Net Weight Max. 500 kg
Packaging Type Air Coils
We certify that the above materials comply with the specification standard / Customers Standard.
