Billets

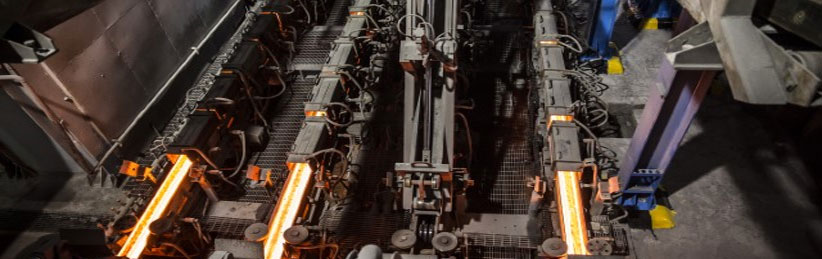

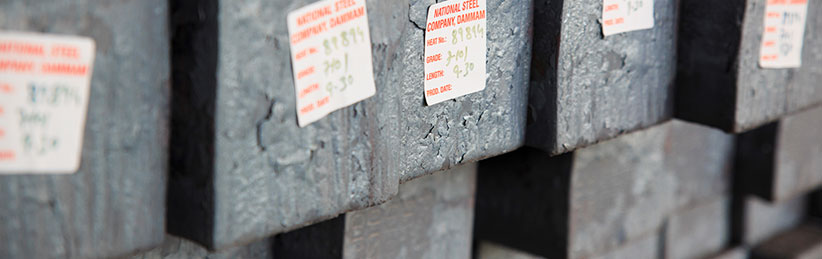

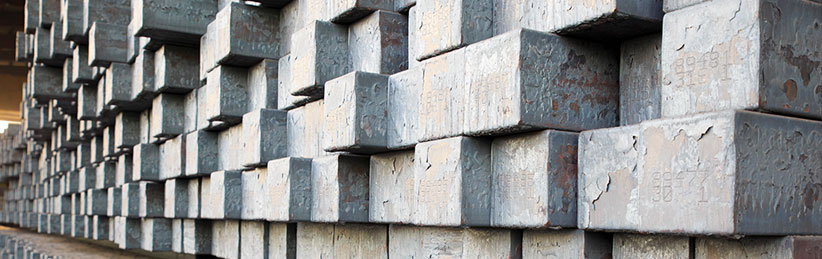

A billet is a length of metal that has a round or square cross-section, Billets are created directly via continuous casting or extrusion or indirectly via hot rolling an ingot or bloom. Billets are further processed via profile rolling and drawing. Final products include bar stock and wire.

Centrifugal casting is also used to produce short circular tubes as billets, usually to achieve a precise metallurgical structure. They are commonly used as cylinder sleeves where the inner and outer diameters are ground and machined to length. Because their size is not modified significantly, they are not always classified as semi-finished casting products.

I.    Billet Size   : 150 X 150mm and 130 X 130mm
II.   Grade         :  ASTM A 615, SASO SSA 2, BS 4449, SAE 1006, SAE 1008, SAE 1010,
                          SAE 1012 and other grades as per customer specifications.

III.   Other Requirements and Tolerances.



Sl # Description Acceptance Limit (max)
1 Rhomoidity 5% Max
2 Twist 0.5 Deg / Meter
3 Side Tolerance ± 3 mm
4 Length tolerance ± 60 mm
5 Waviness Nil
6 Out of Straightness 5 mm / Meter. Max 60 mm in full length
7 Corner radius 4 to 8 mm radius
8 Surface Quality Billet should be free from : Slag patches, Joints, cracks, scabs, blow holes, pin holes, deep cuts, hot tears, heavy burrs etc.
9 Internal Quality Billet should be free from internal cracks, blow holes, pinholes, porosity, central shrinkage, aluminum and slag patches, piping, segregation, etc.
10 Billet Burr Free from heavy burrs and suitable for endless welding during rolling.
11 Billet cross-section Billet ends to be flat and perpendicular to longitudinal axis. Tapered & uneven cuts unacceptable.
12 Concavity / Convexity 2 mm for billet side of 150*150mm

Welded Wire Mesh

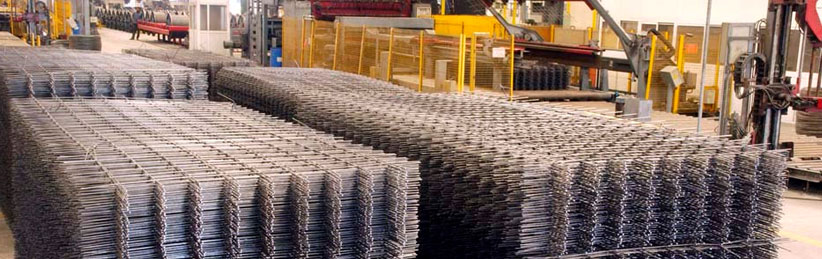

One of Al-FAISAL STEEL’s production departments is engaged in the manufacture of welded wire mesh products. It is equipped with a state-of-the-art welding machine that produces high-quality products in adherence to both local and international guidelines for manufacturing welded wire mesh. Our welding machine can customize both the size and properties of welded wire mesh.

Some of the benefits we offer our customers include precise size, unique spacing, high strength and flat surface welding. We use a signature automated weaving technique and a mesh welding machine that allow us to produce high-quality welded wire mesh at economical prices.

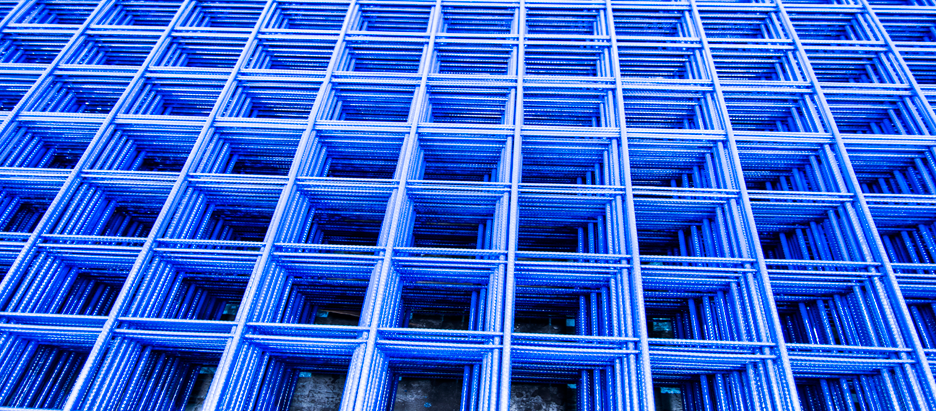

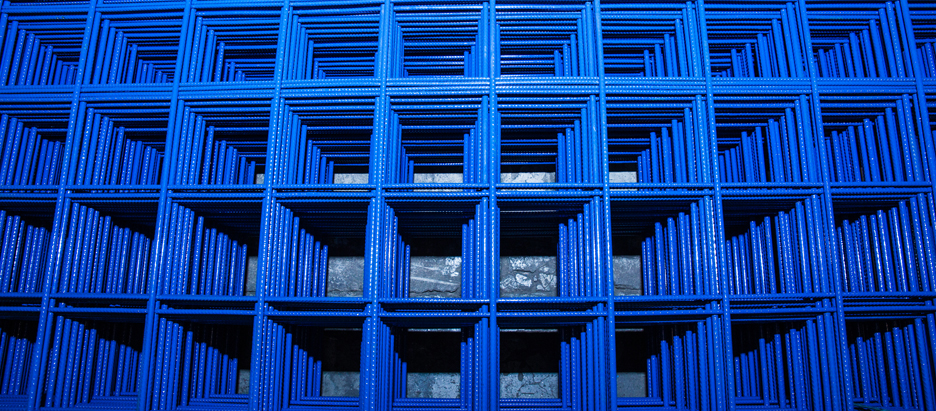

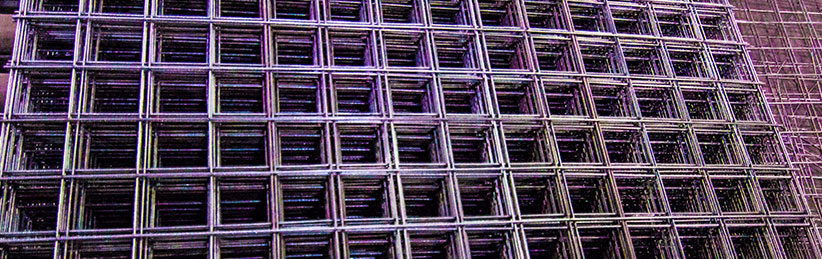

Welded wire mesh is also a steel reinforcement material used in concrete structures. AL-FAISAL STEEL’s welded wire mesh is strong and durable. The mesh can be used to replace conventional cut & bend mesh. Welded mesh is a combination of welded and pre-assembled reinforcements. It is composed of an arrangement of parallel and longitudinal wires with a precise spatial array welded to cross wires at pre-defined spacing. This spacing is defined by national and global standards, such as ASTM A 497, BS 4483, DIN 488 and SASO.

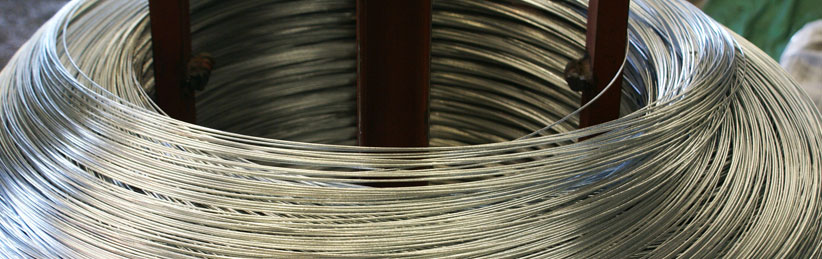

Welded wire mesh is made of high-quality steel wire through a pre-programmed and automated process using complex welding techniques. This produces a mesh with precise dimensional control, a top-notch product with considerable savings in time and labor costs.



WELDED WIRE FABRIC B.S. 4483

TYPE CODE LONGITUDINAL WIRE MM WIRE DIAMETER MM CROSS SECTIONAL AREA IN MM WEIGHT
MAIN CROSS MAIN CROSS MAIN CROSS MAIN CROSS
SQUARE MESH FABRICS IN 4.8M KIBG X 2.4 WIDE SHEETS
A 393 200 200 110 10 393 393 71.00 6.16
A 252 200 200 8 8 252 252 45.50 3.95
A 193 200 200 7 7 193 193 34.80 3.02
A 142 200 200 6 6 142 142 25.60 2.22
A 98 200 200 5 5 98 98 17.70 1.54
SQUARE MESH FABRICS IN 4.8M KIBG X 2.4 WIDE SHEETS
B 1131 100 200 12 8 1131 252 125.60 10.90
B 785 100 200 10 8 785 252 93.80 8.14
B 503 100 200 8 8 503 252 68.30 5.93
B 385 100 200 7 7 385 193 52.20 4.53
B 283 100 200 6 7 283 193 43.00 3.73
B 196 100 100 5 7 196 193 35.10 3.05
SQUARE MESH FABRICS IN 4.8M KIBG X 2.4 WIDE SHEETS
C 785 100 400 10 6 785 70.8 77.40 6.72
C 503 100 400 8 6 503 49 50.00 4.34
C 385 100 400 7 5 385 49 39.40 3.41
C 283 100 400 6 5 283 49 30.10 2.61
